Fixed-Dose Immunization Syringes

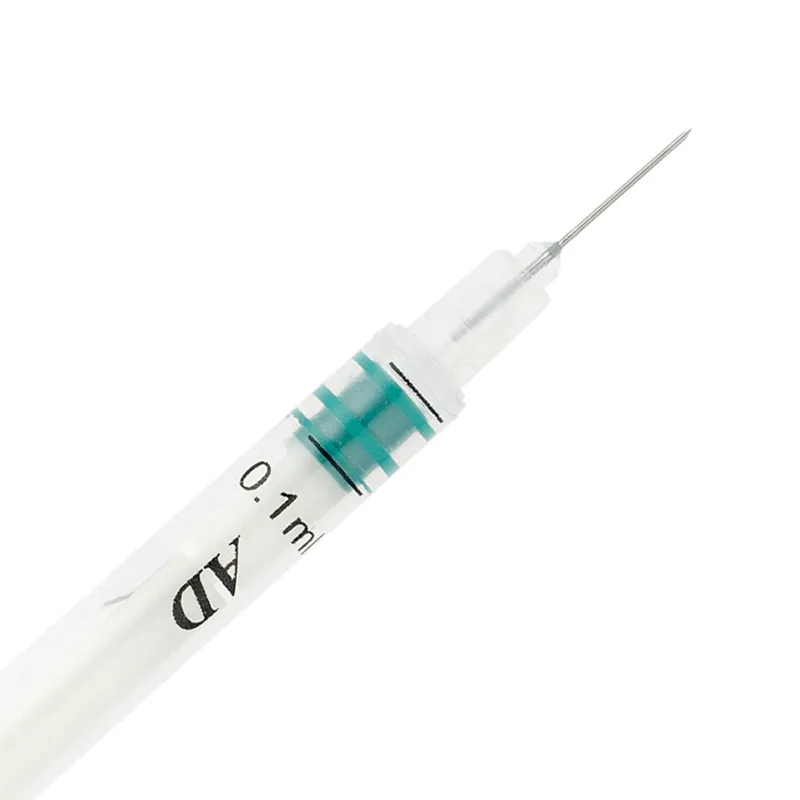

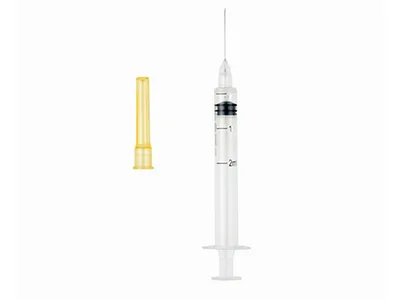

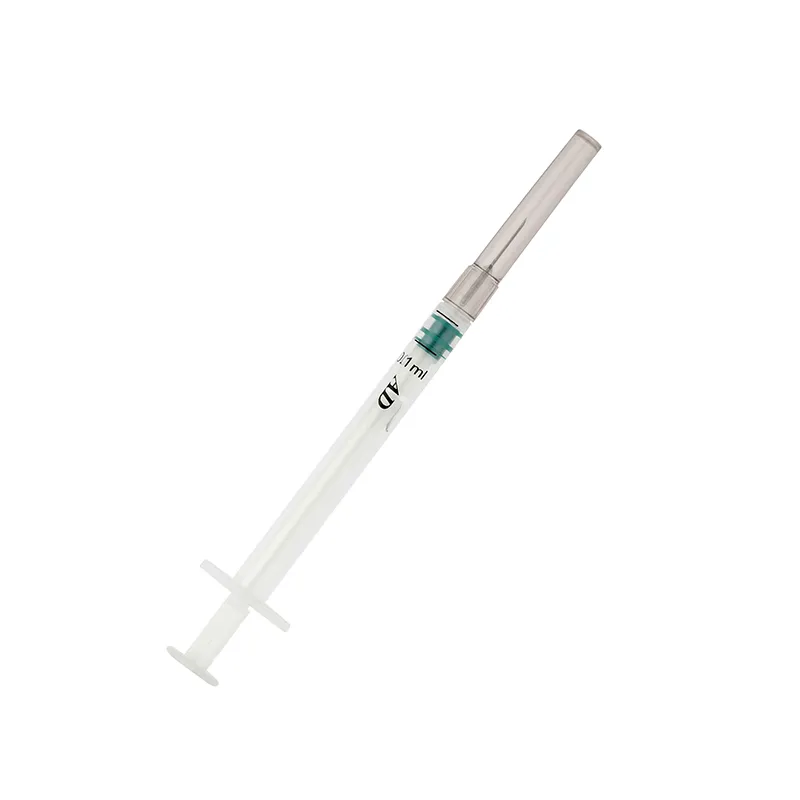

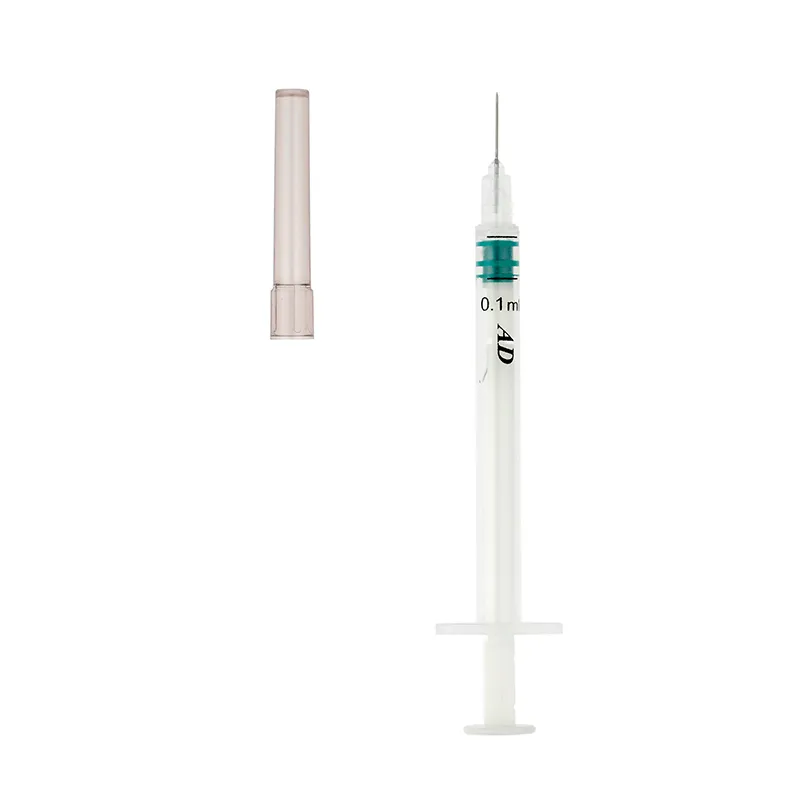

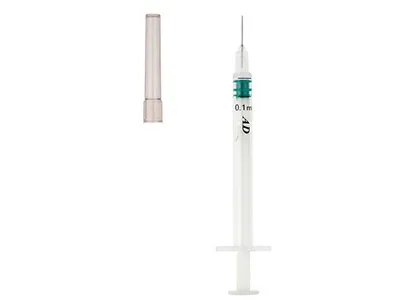

Auto-Disable Syringe (Metal Clip)

Approval: EU-MDR and ISO13485, WHO certificate
Sterilization Method: ethylene oxide sterilization, non-toxic, non-pyrogenic
Syringe Volume: 0.05ml, 0.1ml, 0.5ml, and 1ml

Registration Number of Approval Certificates

Jiangsu Medical Device Registration Certificate No.: 20173154044
EU MDR No.: G10 045084 0043 Rev.00
EU ISO13485 No.: Q5 045084 0039 Rev.01
WHO (World Health Organization) Certificate No.: E008/032, E008/080, E008/033, E008/020
WHO PQS No.: E008/020, E008/032, E008/033, E008/080

Download Registration Certificates

The auto-disable syringe with a metal clip is designed for clinical use, including medication injections and blood draws, as well as fixed-dose vaccine injections of less than 1ml. This syringe type ensures a high level of safety by preventing reuse, thereby reducing the risk of cross-contamination and infections.

Components

These syringes come in two versions: with and without a fixed needle. Both versions feature a concentric tip and are made up of three main parts, with an additional auto-disable component.

Fixed needle: Includes an outer sleeve, plunger, piston, needle cover, needle barrel, metal clip, and needle hub.

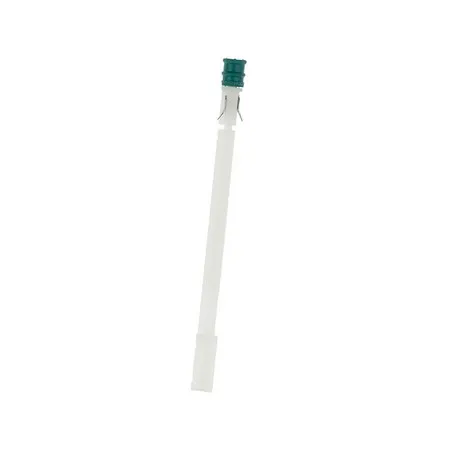

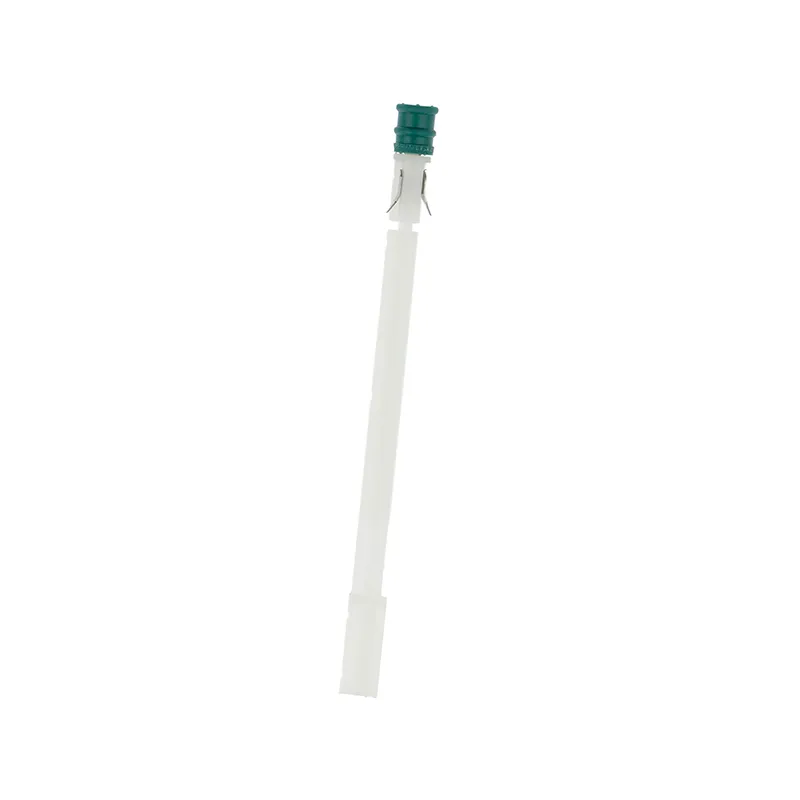

Non-fixed needle: Comprises an outer sleeve, plunger, piston, and auto-disable component, and is used with disposable sterile needles.

Features

No additional steps or changes in user operation are required, making it simple for healthcare professionals to adopt
The syringe auto-disables immediately after injection, with no noticeable resistance during the process, ensuring ease of use without the need for extra force
Allows for air to be expelled during liquid draw, ensuring accurate dosage and preventing air bubbles
The fixed needle design eliminates dead space, resulting in minimal medication residue compared to standard syringes
Both the needle and syringe cannot be reused after a single use, enhancing safety by preventing reuse

Packaging

Our auto-disable syringes are available in three packaging levels to ensure optimal protection and convenience:

Individual packaging: Each syringe is sterile packed in blister packs or high-pressure PE bags to maintain sterility and protection.
Intermediate packaging: Individually packed syringes are grouped into medium-sized boxes made from grey base whiteboard paper or fine corrugated materials, providing additional protection.
Bulk packaging: The medium boxes are then placed into large, durable corrugated cardboard cartons for safe transport and storage, ensuring the products arrive in perfect condition.

Types of auto-disable syringes

Auto-disable syringes come in various types, including:

Locking mechanism: Prevents the plunger from being pulled back after use
Piston-breaking: Breaks the plunger upon completion of the injection
Ratchet locking: Utilizes a ratchet system to lock the plunger in place after use

Importance of using disposable syringes

Disposable syringes are essential in modern medical practices because they effectively prevent cross-contamination and the spread of infectious diseases. By being disposable, these syringes ensure that each patient receives a sterile instrument, significantly reducing the risk of transmitting blood-borne pathogens such as HIV and hepatitis. Their design and sterility standards make them a safer option for both patients and healthcare providers, promoting better health outcomes and maintaining high hygiene standards in medical settings.
