Diabetes Care Products

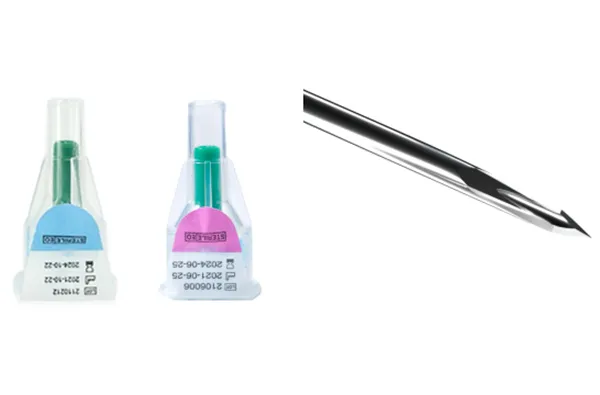

Insulin Pen Needle

Approval: EU-MDR and lSO13485
Sterilization Method: ethylene oxide sterilization, single-use
Needle Gauge: 32G, 31G, 30G, and 29G
Needle Length: 4mm to 12.7mm
Wall Type: regular wall (RW) and thin wall (TW)
Bevel: 11°±2° long bevel (LB) and 17°±2° short bevel (SB)

Registration Number of Approval Certificates

EU MDR NO.: G10 045084 0043 Rev.00
EU ISO13485 No.: Q5 045084 0039 Rev.01

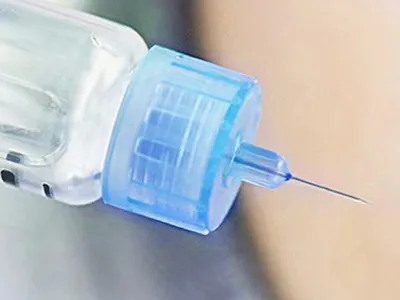

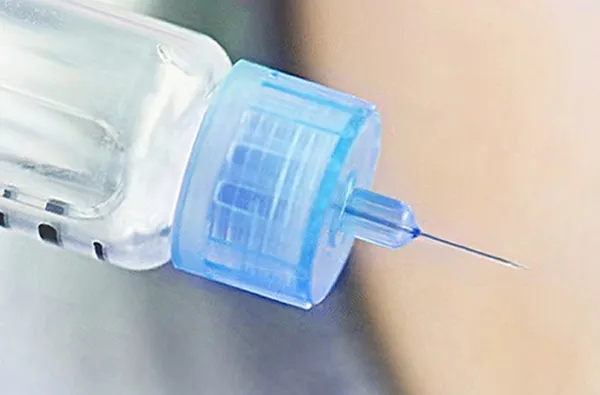

Insulin pen needles are essential for delivering precise and comfortable insulin injections to diabetic patients. Our insulin pen needles are crafted using a five-bevel grinding process, which significantly enhances penetration compared to traditional three-bevel needles. The silicone coating reduces resistance at the needle tip and tube, significantly decreasing injection pain and offering a more comfortable experience for patients. These needles are specifically designed for use with insulin pens to ensure effective subcutaneous insulin delivery.

Components

The needle assembly consists of a sealed film, needle barrel (SUS304 stainless steel), needle hub (PP), outer cap (PP), and inner cap (PP). The lubricant used is polydimethylsiloxane, and the adhesive is UV glue, ensuring smooth and safe operation.

Specifications

Needle Gauge	Size
32G	0.23*4mm
31G	0.25*5mm
30G	0.30*6mm
29G	0.33*7mm
